Cheap price half cut 370W 385W solar panel

Model Number
365W~385W
Type
PERC, Half Cell, All Black
Warranty
5years, 30 Years
Application
Industrial And Commercial Projects
Cell Size
166mmx83mm
Cell Type
All Black

Produt Details

High Efficiency Solar Panel Mono 350W 360W 370W 385W All Black Monocrystalline Solar Panel Price

all black solar panel

Maximum Power(Pmax)	365W	370W	375W	380W	385W
Open Circuit Voltage(Voc)	41.4V	41.6V	41.8V	42.0V	42.2V
Short Circuit Current(Is c)	11.23A	11.30A	11.37A	11.44A	11.51A
Voltage at Maximum Power(Vmp)	34.4V	34.6V	34.8V	35.0V	35.2V
Current at Maximum Power(mp)	10.62A	10.70A	10.78A	10.86A	10.94A
Module Efficiency(%)	20.01	20.28	20.55	20.83	21.10
Operating Temperature	-40℃to+85°C
Maximum System Voltage	1000VDC/1500VDC
Fire Resistance Rating	Type 1(in accordance w thU L 1703) /Class C(IEC 61730)
Maximum Series Fuse Rating	20A
STC:Irradiance1000W/m², Cell temperature 25℃, AM 1.5; Tolerance of Pmax:±3%; Measurement Tolerance:±3%
More details please send inquiry to us

solar panel

1.Half-cell module technology:
The complete cell is cut into two small pieces or more, and the prepared module becomes a half-cell module. Since the current is less than half, the power loss of the welding tape is reduced, so that the output power of the module is increased, compared with the conventional 60-cell module, the half-cell module can generally be increased by about 5W.

2. higher Yield Due to Better Shading Response
Half Cell Module comprises two separated and identical solar cells arrays, which means the oridinary strings of cells are cut into halves, and these shorter strings compose which has separated current paths. when a module is shaded, only one side shaded array's current will be impacted, while the other array will still be functionally producing power. under this circumstance, when a module is shaded, the affected working areas of blade will be 50% less.
By cutting solar cell into halves, the internal power loss will be lower and hot spot effect will also be reduced.

solar panel

>90% Higher Transmittance EVA,Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer
Durability.

21kV High-Voltage Breakdown Test, Better Durability Withstand Fire/Dust/UV/Tear Tests For Super Isolation Back Sheet,Multi-layer
Structure.

solar

12% Ultra Clear Tempered Glass. 30% Lower Reflection
22% Higher Efficiency,5BB Cells.93 Fingers PV Cells, Anti-Pid
120N Tensile Strength Frame.110% Seal-lip Design Glue Injection
(Black/Silver Optional)

solar power

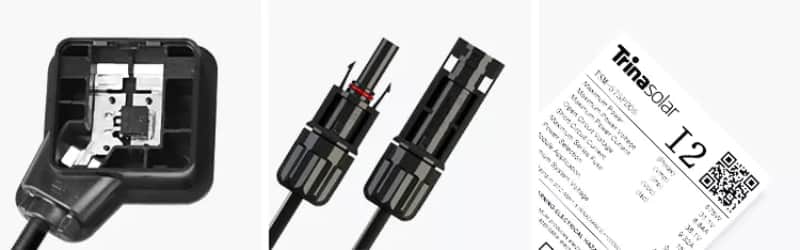

IP67 Waterproofness Junction Box.Innovative Full-Glue-Filled
4mm2 Qualified cable with MC4 500N Tensile Strength
Waterproof Labels.The original brand

*The advantage of Namkoo all-black pv module is that the metal grid lines are usually not visible on the surface, which makes them easier to visually integrate into the roof.
*Namkoo solar panel has an all-black appearance and can also be used to meet specific architectural requirements.
* Monocrystalline modules provide for the highest efficiency rate. Namkoo full black mono solar panel provides more than 550w power.
* Advanced encapsulation material with multi-layered sheet minimizations enhances cell performance and provides a longer service life. Corrosion-resistant aluminum frame allows extended outdoor use. Glass is anti-reflective, highly transparent, and lowi ron-tempered. No hot-spot heating.
* Each solar panel comes with pv cable with PV male/female quick Mc4 connectors on the back of solar module.
* Durable lightweight anodized aluminum frame and reinforced safety and anti-reflection coated glass. Includes waterproof IP67 or IP68 rated junction box.
* Namkoo solar provide 10 years product warranty, 25 years power performance warranty, 30 years is optional.

solar panel

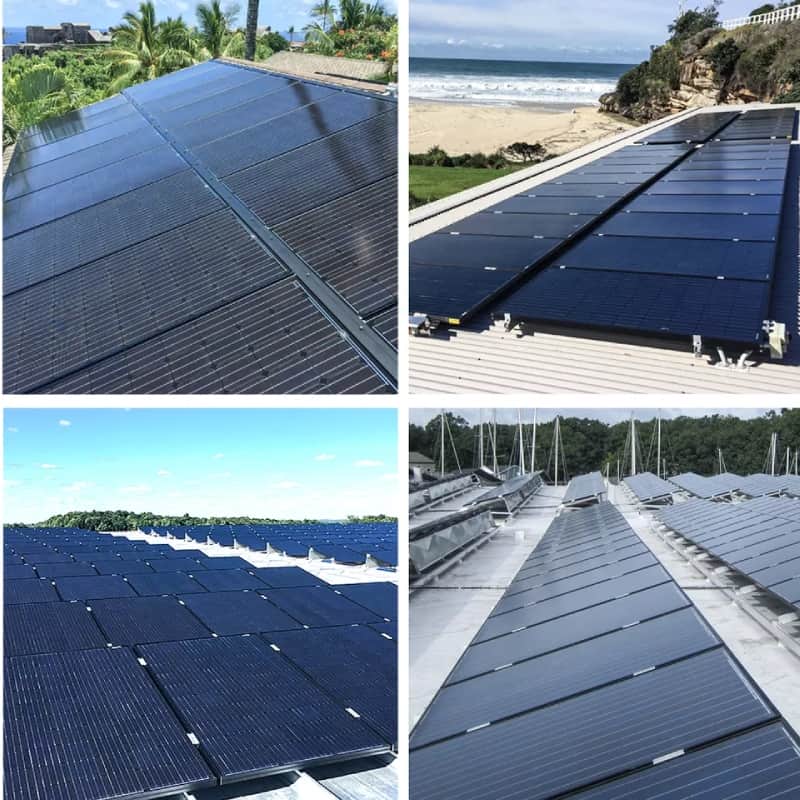

Project:

solar panel project
