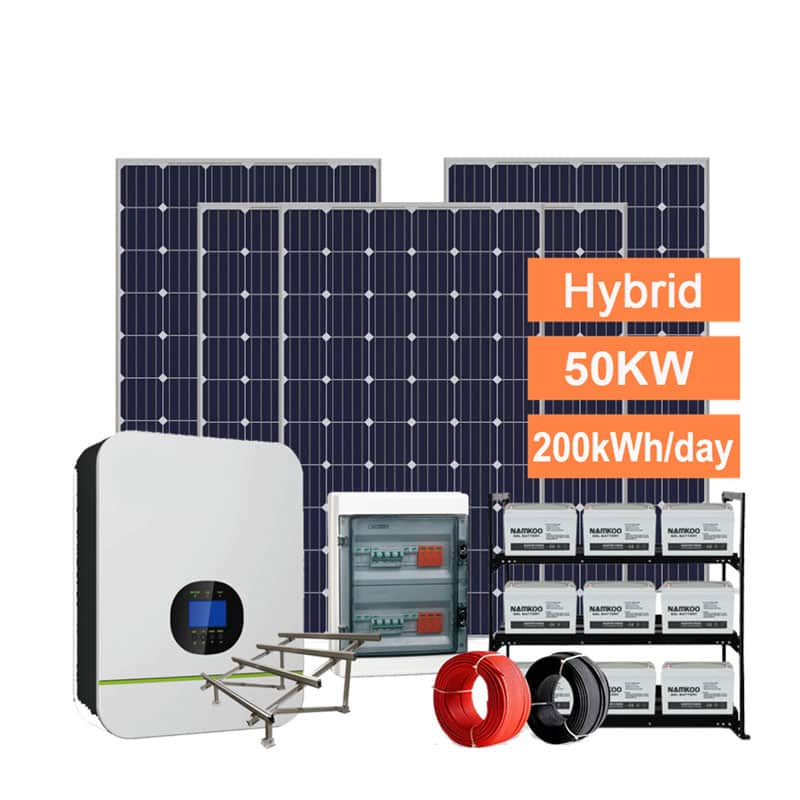

Hybrid solar power system 50kw solar energy storage system with battery

Model Number
NK50KW
Application
Home
Solar Panel Type
Monocrystalline Silicon, Polycrystalline Silicon
Battery Type
Lead-Acid, Lithium Ion
Controller Type
MPPT, PWM
Mounting Type
Ground Mounting, Roof Mounting
Output Voltage (V)
110/120/220/230V/240V/380V
Output Frequency
50HZ/60HZ

Produt Details

Hybrid solar power system 50kw SELLING POINTS:

hybrid-solar-power-system-50kw

Hybrid solar power system 50kw working theory:

The hybrid sorage solar power system is one where your solar panels remain connected to the power lines of the grid and have a backup battery system to store excess power. The solar energy absorbed by the solar panels generates usable electricity through an inverter. From there, electricity either goes into your home, into your battery, or into the grid.

The benefit of a hybrid solar system is that you will always have electricity in all situations. With a backup battery, excess energy produced by your solar panels (but not used by your home) is stored in that battery. Then, when the sun isn't shining, the battery will power you at night, during system outages, or inclement weather.

Components	NKGTS-5KW	NKGTS-10KW	NKGTS-20KW	NKGTS-30KW	NKGTS-50KW
380W Solar Panel	14 Piece	20 Piece	52 Piece	78 Piece	132 Piece
DC Isolation Switch	1 Set	1 Set	1 Set	1 Set	1 Set
Grid Tied Inverter	5KW	10KW	20KW	30KW	50KW
AC Isolation Switch	1 Set	1 Set	1 Set	1 Set	1 Set
DC Cable 4mm2	300 Meters	300 Meters	300 Meters	300 Meters	300 Meters
MC4 Connector	14 Pair	20 Pair	52 Pair	78 Pair	13 Pair
Mounting System	1 Set	1 Set	1 Set	1 Set	1 Set
PV Tools	1 Set	1 Set	1 Set	1 Set	1 Set

Hybrid solar power system 50kw SOLAR PROJECT SERVICE PROCESS

(1) PROJECT CONSULTATION.	(2) THE PROJECT SURVEY.	(3) PROJECT DESIGN.
Product introduction, process explanation, investment budget analysis.	Engineers site roof survey, load measurement, shielding analysis, electrical building path planning.	According to the survey results, the optimal system design scheme and grid connection scheme are formulated to escort the high-quality power station.
(4) APPLICATION.	(5) PROVIDE COMPLETE EQUIPMENT.	(6) OVERSEAS OPERATION, MAINTENANCE AND SERVICE GUARANTEE.
Responsible for preparing the application materials and connecting to the network.	According to the design to provide photovoltaic panel, inverter, bracket and other complete set of material equipment.	Professional construction, grid acceptance, operation and maintenance, intimate after-sales service.

Namkoo Project Service Process

ABOUT NAMKOO

Namkoo Group is an international high-technology and fast growing group company, we specializing in R&D, manufactures on grid and off grid solar power system, hybrid solar storage system, mono solar panel, poly solar panel, flexible solar panel, Shingled & HJT Solar Panel, solar inverter & battery, and other solar applications. With more than 18 years solar experience, Namkoo is aiming to become “Your Best Collaborate Solar Manufacturer”.

Apart from the traditional solar panel, battery, solar power system and solar pump system products, we have researched and offered successful advanced solar application including BIPV solar projects, solar carport charger station, IOT + solar products like A.I. solar bus station and A.I. PV waste sorting kiosk, etc.

eight steps to produce solar panel

Namkoo has distributed 97 patents. The distribution of invention patents accounted for 29%, and the issued patents accounted for 65%. 14 software Copyrights have been distributed, of which 100% have been issued.

The patent application covers waterproof, corner, flexible, controllable temperature, fault identification, adjustable, intelligent, high power, high density and other functional and technical highlights, covering the core photovoltaic power station, photovoltaic vehicle, photovoltaic bracket, photovoltaic tile, photovoltaic building, sun room, cloud broadcasting, charging pile, storage device, photovoltaic street lamps and other products. Involving multiple grid, PERC, buckle, mechanical plug type and other key technology, process.

The 14 software Copyrights form the intellectual property protection of core system technologies such as photovoltaic power station monitoring system, cloud broadcasting system, atmospheric environment monitoring system, motor operation monitoring system, water quality monitoring system, intelligent water system, intelligent fire protection system, intelligent bus station air monitoring system.
