Solar Energy Plant off Grid 10kw 15kw 50kw 100kw Electricity Sun Power Storage Systems

Battery Type
Lead Acid/Lithium Battery
Inverter
30/50/100kW Hybrid Inverter
Solar Panel
550w 585w 700w Solar Panel
Monitoring
Wifi/GPRS Monitoring System
Load Power (W)
30/50/100kW
Nominal Voltage
220/380/480v Three Phase
Rated Frequency
50/60Hz
Application
Residential/ Commercial/Industrial Use

Produt Details

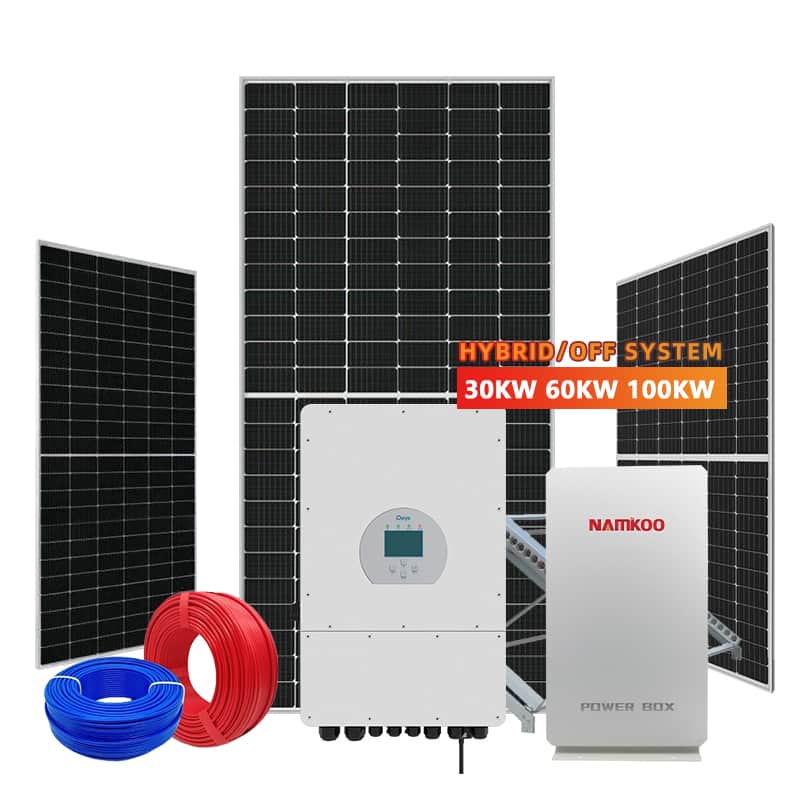

20KW 30KW 100KW Off Grid Solar Energy Storage System

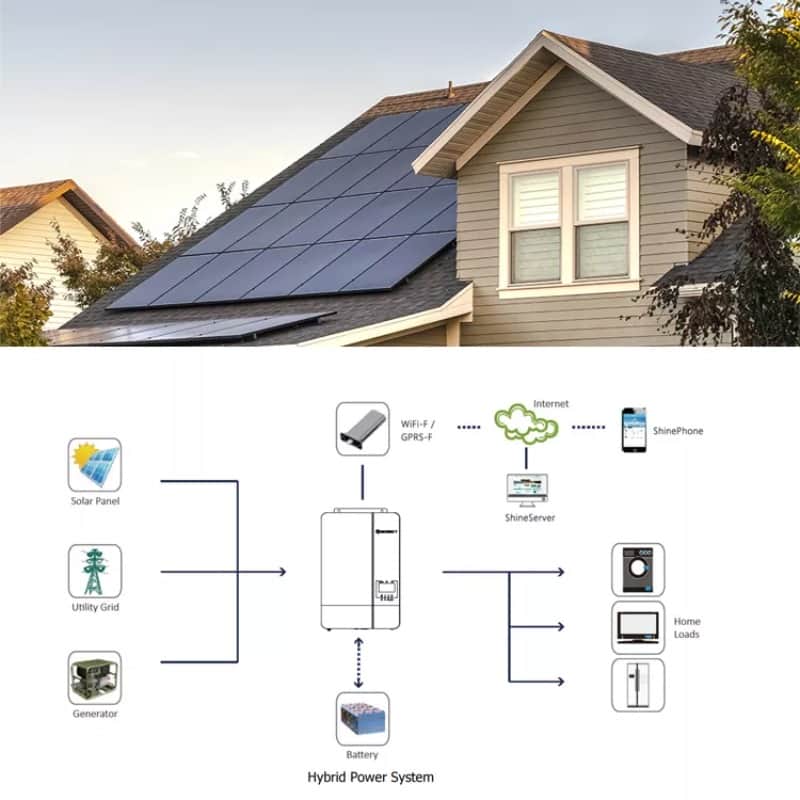

Off grid system

Solar Power System For Home
------Standard Configuration Solution
Below solutions are different configuration for home power supply. Any special requirements, please let us know, so that update
solution for you. 10KW 20KW 30KW 40KW 50KW 60KW 70KW 80KW 90KW 100KW 150KW....
Full set solar power system Includes solar panels, solar controllers, batteries, inverter, cables, solar panel
connectors,switches,meters. With technical support, Installation guider, training.

deye solar system

Item	Model	Description	30KW	50KW	100kW
1	Solar Panel	Mono Perc 455W Solar Panel	68pcs	119pcs	238pcs
2	Combiner Box	Customized	1 pc	1 pc	1 pc
3	Lithium Battery or Lead Acid Battery	lithium battery racks, BMS and battery cables	1 set 30kwh 307.2V 105AH	1set 53.76kwh 512V 105AH	1 set104.96kwh 512V 205AH
4	Hybrid Inverter	230/380VAC 50HZ built in MPPT controller	1 pc 30KW grid hybrid	50KW grid hybrid inverter	1 pc 100KW grid hybrid inverter
5	Mounting Support	Roof/Ground	1 set	1 set	1 set
6	Cable	4mm² PV cable	500m	700m	1200m
7	Connector	Solar Connector	36pairs	54pairs	70pairs
8	Tools Bag	Solar Installation tools	1 set	1 set	1 set

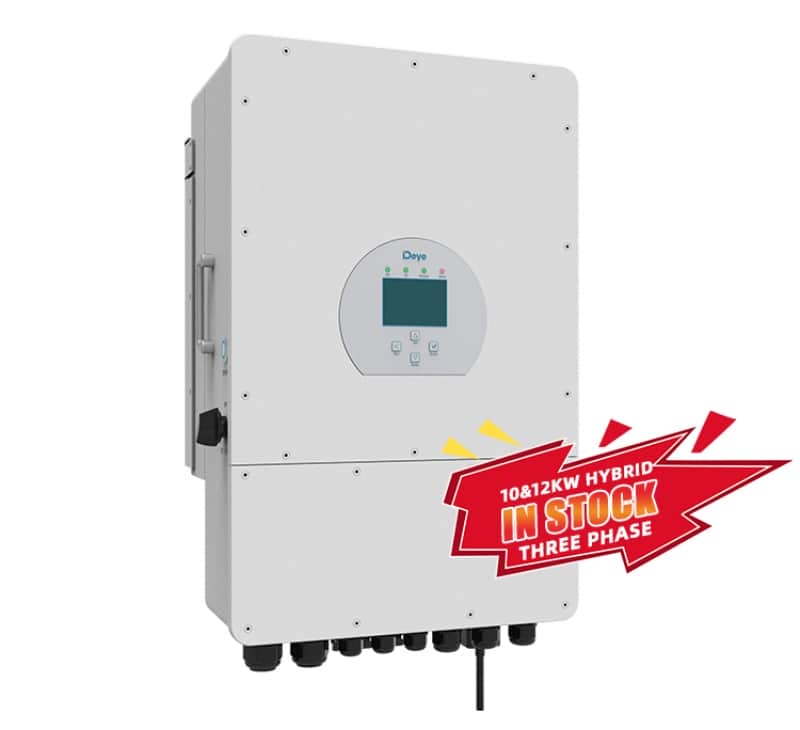

Deye Three Phase Hybrid Inverter
SUN-8/10/12K-SG01LP3 | 8-12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
SUN 8/10/12K-SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.

deye solar inverter

ESS/BESS/Solar Wind Energy System Application
1. Lithium Iron Phosphate Battery Pack：95% DOD , More than 8000 cycle times
2. Long warranty period：12 years
3. Higher energy density,smaller volume for household.
4. Long Life and Safety.
5. Photovoltaic system：this battery pack is designed for household photovoltaic systems.
6. Battery management system(BMS)：the battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
7. Expand ability： this battery pack can be easily expanded by adding expansion battery packs in parallel connection.

power wall

540W Mono solar panel
Excellent micro-concentration technology
The advanced red velvet technology on the surface of the cell can also perform in low light environment, and the optical utilization rate is increased by 20%.
Load capacity
The whole assembly is certified for wind load of 2400Pa and snow load of 5400Pa.
EVA protective film + coated tempered glass
Fire rating, no cracking, high load, solid frame components, safer to use.
Durability and reliability
Reduce the aging phenomenon such as cracking and corrosion caused by moisture, dust, smoke, acid and alkali erosion.
10-year warranty, 25-year service life

550w solar panel
