New Arrival MONO Half-Cut / Double Glass Module 540w Mono Solar Panel

1.High module conversion efficiency up to 21.38% by using innovative Half-cell design
and Multi-busbar(MBB) cell technology.
2.Low temperature coefficient and excellent performance under high temperature and
low light conditions.

Produt Details

540w Mono Solar Panel Features

MONO half-cut / double glass module, assembled with multi-busbar PERC technique and half-cut structure, which can not only absorb the energy from the front of the module, but also absorb the reflected light and the scattered light from the back, offer the advantages of higher power output, reduce shading effect on the energy generation,enhance the mechanical load bearing capacity as well.

ADVANCED PERFORMANCE & PROVEN ADVANTAGES
1.High module conversion efficiency up to 21.38% by using innovative Half-cell design and Multi-busbar(MBB) cell technology.
2.Low temperature coefficient and excellent performance under high temperature and
low light conditions.
3.Robust aluminum frame ensures the modules to withstand wind loads up to 2400Pa
and snow loads up to 5400Pa.
4.High reliability against extreme environmental conditions (passing salt mist,
ammonia and hail tests).
5.Potential induced degradation (PID) resistance.

Electrical Parameters at STC
Type	SPM144B/525	SPM144B/530	SPM144B/535	SPM144B/540
Rated Maximum Power (Pmax) W	525	530	535	540
Open Circuit Voltage (Voc) V	49.15	49.3	49.45	49.6
Maximum Power Voltage (Vmp) V	41.15	41.31	41.47	41.64
Short Circuit Current (Isc) A	13.65	13.72	13.79	13.86
Maximum Power Currant (Imp) A	12.76	12.83	12.9	12.97
Module Efficiency (%)	20.3	20.5	20.6	20.8
Power Tolerance	0 ～+5W
Temperature Coefficent of Isc	+0.045%/℃
Temperature Coefficent of Voc	-0.275%/℃
Temperature Coefficent of Pmax	-0.350%/℃
STC	Irradiance 1000W/㎡, Cell temperature 25℃, AM1.5

540W mono solar panel specification

540W mono solar panel parameters

540w mono solar panel characteristics

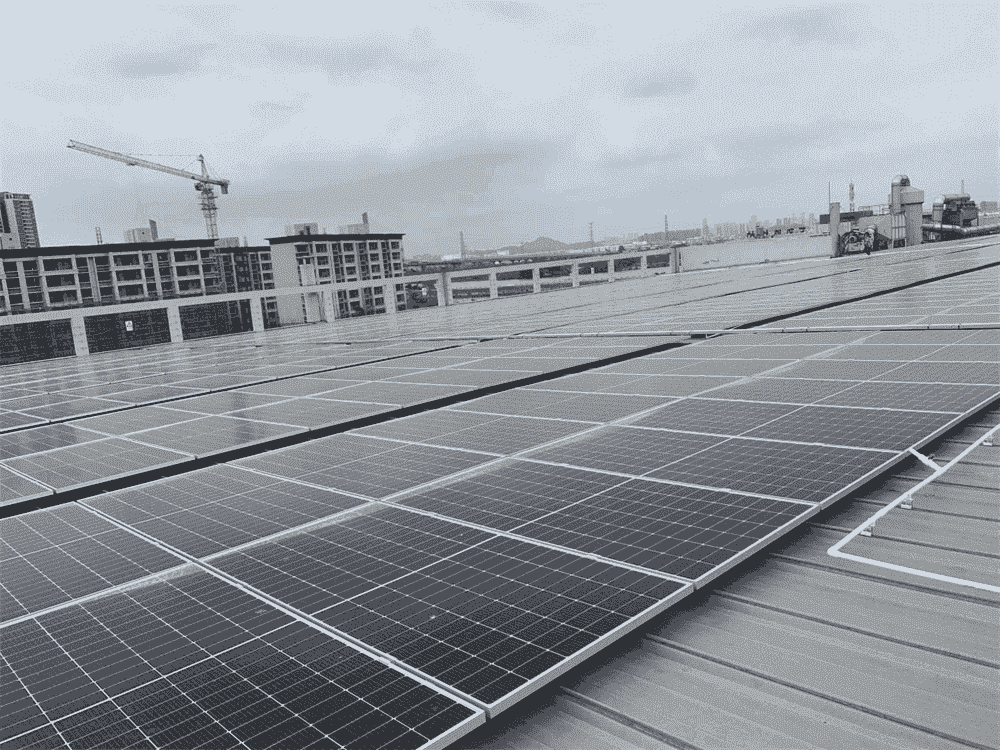

540w mono solar panel project case

ABOUT NAMKOO

Namkoo Group is an international high-technology and fast growing group company, we specializing in R&D, manufactures on grid and off grid solar power system, hybrid solar storage system, mono solar panel, poly solar panel, flexible solar panel, Shingled & HJT Solar Panel, solar inverter & battery, and other solar applications. With more than 18 years solar experience, Namkoo is aiming to become “Your Best Collaborate Solar Manufacturer”.

Apart from the traditional solar panel, battery, solar power system and solar pump system products, we have researched and offered successful advanced solar application including BIPV solar projects, solar carport charger station, IOT + solar products like A.I. solar bus station and A.I. PV waste sorting kiosk, etc.

solar power system and solar panel manufacturing details

Namkoo Team

Namkoo has distributed 97 patents. The distribution of invention patents accounted for 29%, and the issued patents accounted for 65%. 14 software Copyrights have been distributed, of which 100% have been issued.

The patent application covers waterproof, corner, flexible, controllable temperature, fault identification, adjustable, intelligent, high power, high density and other functional and technical highlights, covering the core photovoltaic power station, photovoltaic vehicle, photovoltaic bracket, photovoltaic tile, photovoltaic building, sun room, cloud broadcasting, charging pile, storage device, photovoltaic street lamps and other products. Involving multiple grid, PERC, buckle, mechanical plug type and other key technology, process.

The 14 software Copyrights form the intellectual property protection of core system technologies such as photovoltaic power station monitoring system, cloud broadcasting system, atmospheric environment monitoring system, motor operation monitoring system, water quality monitoring system, intelligent water system, intelligent fire protection system, intelligent bus station air monitoring system.

Namkoo's Certifications
